Are SHX Font Comments in PDFs a Problem for You?

Both AutoCAD 2016 and AutoCAD 2017 include improvements for working with PDFs in AutoCAD.

That means the popularity of vector PDFs will continue to grow. With or without layers, the ability to convert a PDF into CAD objects to edit and republish is a very useful process, but what if you open the PDF and move your cursor around the screen and see SHX text in comments like this?

If you want your SHX text to be converted to a comment in the PDF and you are using AutoCAD 2016, then you're in luck. If you don't want those comments created by default, just install AutoCAD 2016 Service Pack 1 and set the EPDFSHX system variable to 0 then publish to PDF.

There's an Autodesk Knowledge Network page describing the resolution to this issue.

Drawing text appears as Comments in a PDF created by AutoCAD 2016
https://knowledge.autodesk.com/support/autocad/troubleshooting/caas/sfdcarticles/sfdcarticles/Drawing-text-appears-as-Comments-in-a-PDF-created-by-AutoCAD.html

Note that the setting should be 0 before you publish to PDF.

Updated Version of Screencast is Available

There is an updated version of the Autodesk Screencast. It was posted on March 29, 2016. You can download either the Windows or Mac version here.

If you have not yet tried the Autodesk Screencast recording software, you should download your free copy today. Autodesk Screencast records basic audio and video in almost any application as well as keystrokes and mouse clicks used during recordings in Autodesk products such as AutoCAD.

The Autodesk Screencast software also allows you to make some edits to the timeline such as removing a selected portion of the recording.

Once you've recorded and made adjustments to the timeline, you can post the recording on the Autodesk Knowledge Network.

The recordings you upload can be marked as private, public, or unlisted.

Read more about Autodesk Screencast here then search for other useful tips posted there as well. You can even subscribe to a user's Screencast account to get notified each time a new video or AKN is posted by that user.

What's your favorite new feature in AutoCAD 2017?

In case you haven't heard, AutoCAD 2017 is now available for download. Many websites are now posting the new features you'll find in this version. There's even a feature list comparing the last few versions of AutoCAD for you to review.

In case you want to learn about the new features in AutoCAD 2017, begin with the (1) Learn portion of the Start Tab. There's a (2) What's New video showing the latest and greatest new features in AutoCAD 2017. The (3) Getting Started Videos can help show you around the interface and help you start using the software. The (4) Learning Tips are useful for many disciplines and the right and left arrow buttons can be used to access additional tips. Finally there's an (5) Online Resources section with links to additional learning resources, such as The Hitchhiker's Guide to AutoCAD Basics.



You can also access Learning Videos in the Autodesk Desktop App.

If you initially decided not to migrate/import your settings from your previous version of AutoCAD, you can later access this newly updated feature using the Migrate From a Previous Release command in the Start Menu. You will need to close AutoCAD 2017 to run this command.

The new Migrate Custom Settings dialog is more user friendly than previous versions.

Centerlines and centermarks are new features for AutoCAD 2017 as well. They are dynamic, which means they move with the source objects as shown in this video.

There are more new features such as improved PDF import support and graphics enhancements including making arcs look like arcs instead of segmented arcs even during a move command. For now, though, I want to discuss one of my favorite improvements in AutoCAD 2017. You might not even notice it until I describe it to you.

In previous versions of AutoCAD, when you click the New Folder icon, you had to then select the folder and right click or select the folder twice, slowly, to edit the folder name.

In AutoCAD 2017, the folder name is highlighted by default upon creation. That means you can start typing a folder name immediately after clicking the New Folder icon.

Yes this is how it works in Windows Explorer, but now it works the same way in AutoCAD 2017.


That leads me to my initial question: What's your favorite new feature in AutoCAD 2017?

Point to Point Inverse in Civil 3D

I find that map commands in Civil 3D can be very useful for both land surveyors and civil engineering technical staff. The problem seems to be that many users don't know about these very useful commands.

Here's a question than I'm often asked by land surveyors:

Is there a point to point inverse in Civil 3D?

The answer to this question is YES!

CGSLIST + the 'PN transparent command.

CGSLIST

CGSLIST is located on the Analyze ribbon tab in the Inquiry panel.

BEFORE YOU BEGIN

The help information for this command doesn't mention vertical difference, but that information is included in the output for this command.

This command uses the settings for Angle, Distance, and Direction that are stored in the Ambient Settings of the current drawing. If you want the course (bearing) to be in N90°00'00"E format, open the Drawing Settings dialog, choose the Ambient Settings tab, change the Direction > Format setting to DD°MM'SS" and press OK. You can also change the precision for coordinates, distances, and more.

You should also expand the command line so that you can see at least five lines of the command line history.

My example begins with a drawing that contains two points that are exactly 10 feet apart horizontally and 5 feet apart vertically. This allows me to confirm the horizontal and vertical results of the command.



Using the CGSLIST Command

1. After selecting the Analyze ribbon tab, locate the Inquiry panel and click on the List Slope (CGSLIST) icon.




2. When prompted, type P and press enter to use the Points selection option. Selecting the Points option here only notifies the command that you want to select coordinate points, not Civil 3D cogo points, for the input data type.






NOTE: The command line shows that _AeccCgSList is the command running. You can also access this command by typing CGSLIST at the command line and pressing enter. If you are using Map 3D, use MAPCGSLIST. All three commands work in Civil 3D version 2015 or later.

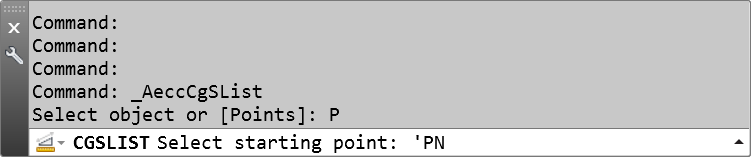

3. When prompted to select a starting point, type 'PN and press enter. This will tell the command that you will be entering Civil 3D cogo point numbers instead of selecting coordinate points by clicking on the screen.






4. When prompted to enter a point number, enter the starting cogo point number then press enter.





5. The coordinates of the cogo point will appear in the command line history. Now enter the next cogo point number for the ending point then press enter.




This command reports horizontal distance and elevation difference. It also reports the point elevations along with the grade and slope between the points. Notice that the distance shown is a horizontal distance, not a slope distance which is the result reported when using the DISTANCE or MEASUREGEOM command.

Now...

Don't be fooled!

Even though the command shows that the 'PN transparent command is still running, the CGSLIST command has reverted to the original Select object or [Points] prompt. At this point you'll need to press ESC to exit the 'PN transparent command, type P then enter to return to the Points selection, and finally type 'PN and press enter to return to the 'PN transparent command.

If you want a command that repeats with the 'PN transparent command, record a macro. If you're interested in a follow-up blog describing how to create and use that macro, please let me know in the comments section of this posting.
